PandA Type A – Caiman Model Specific (UK1 and OG UK2/3)

Type A – Caiman Model Specific (UK1 and UK2)

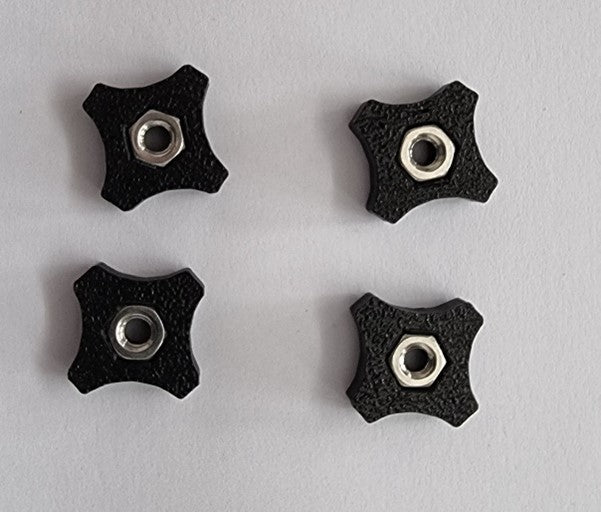

This consists of four separate mounts and is independent of chassis width.  They are used separately to chassis braces.  Each of the four are held in place by 2 off M3x10 button head bolts.  The front mounts can use any two of the 5 holes depending on where the body post is required to go through the bodyshell.  The rears are designed to use the 2 mounting holes as shown although others could be used.  Each body post is an M4x16 button head bolt.  These can be replaced for longer ones by the user and spacers added above if required to fit various bodyshells.  The body is then attached with the thumbscrews as shown below.  All the hardware required is supplied in the packaging, with the exception of longer M4 bolts and spacers.
