GCRC Caiman Black 78mm Skid - Reefs XPT3 LCG Transmission Skid by PandA

GCRC Caiman Black 78mm skid for Reefs XPT3 LCG transmission.

available from GCRC: https://rcservos.co.uk/products/xpt3-lcg-transmission-black-or-raw

This is a 15mm angled skid that raises the motor 10 degrees so the front of the transmission angles down to the front axle and the rear up to a bearing carrier for best driveline. As the rear is long the ommision of a bearing carrier and use of a long driveshaft is also possible without binding.

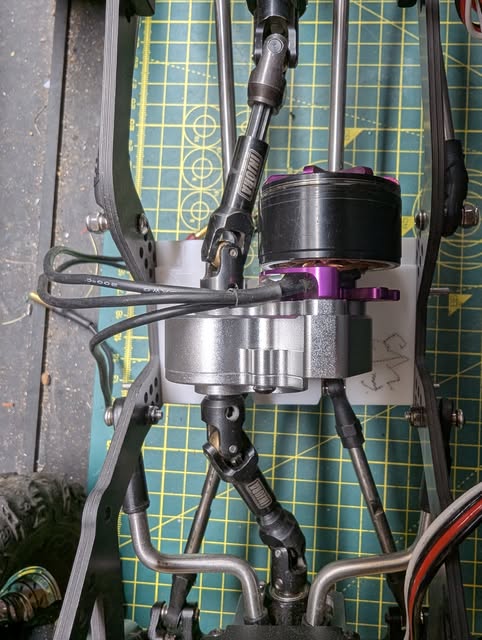

Max motor size: Forward Std Revolver cetral diff front axle (540M shown).

Max motor size: Forward 5td Revolver for offset pumpkin axles.

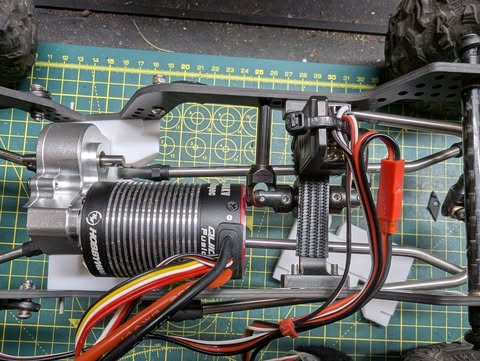

Max motor size: Rear 550/Fusion with offset bearing carrier or straight single driveshaft.

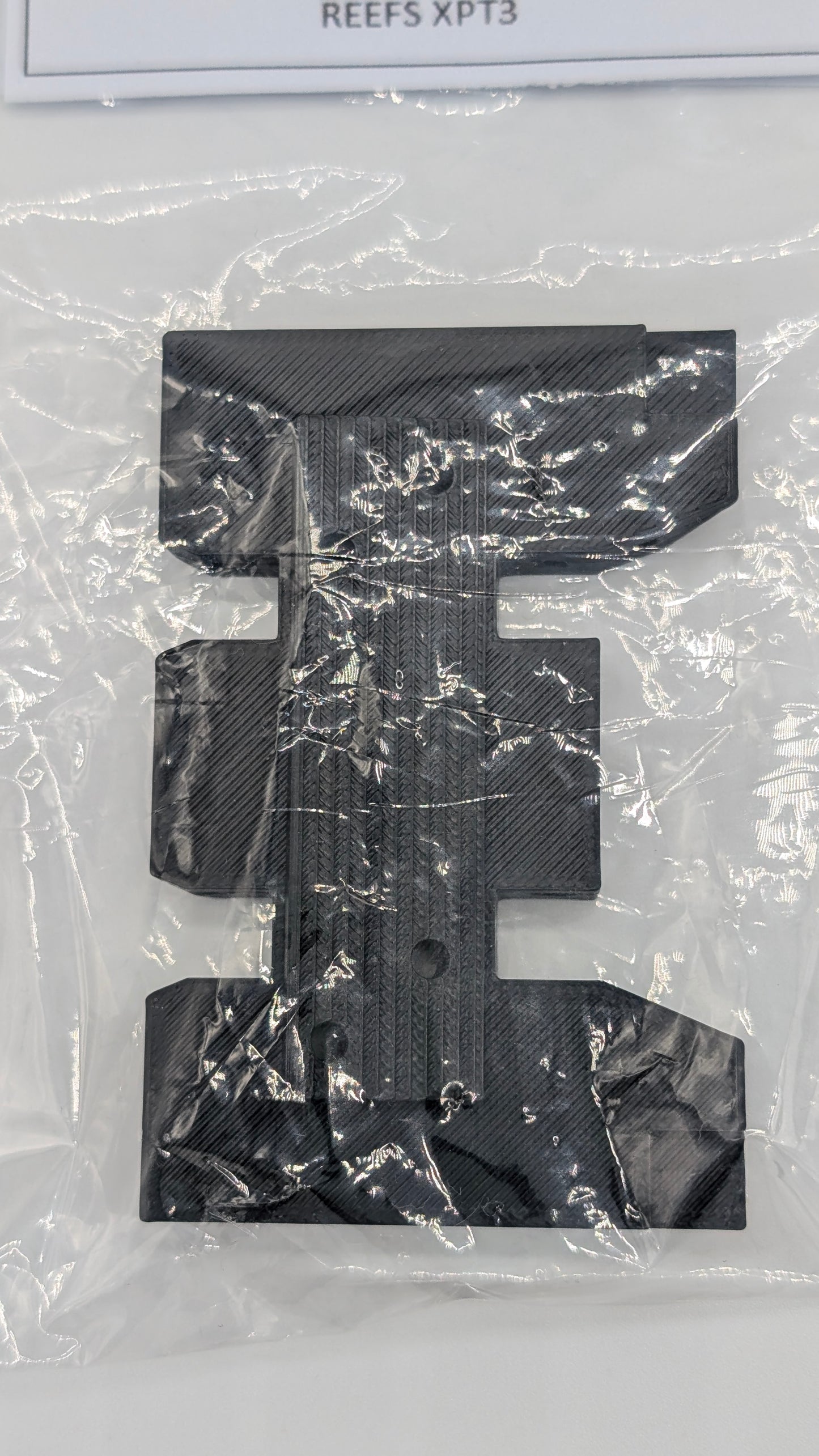

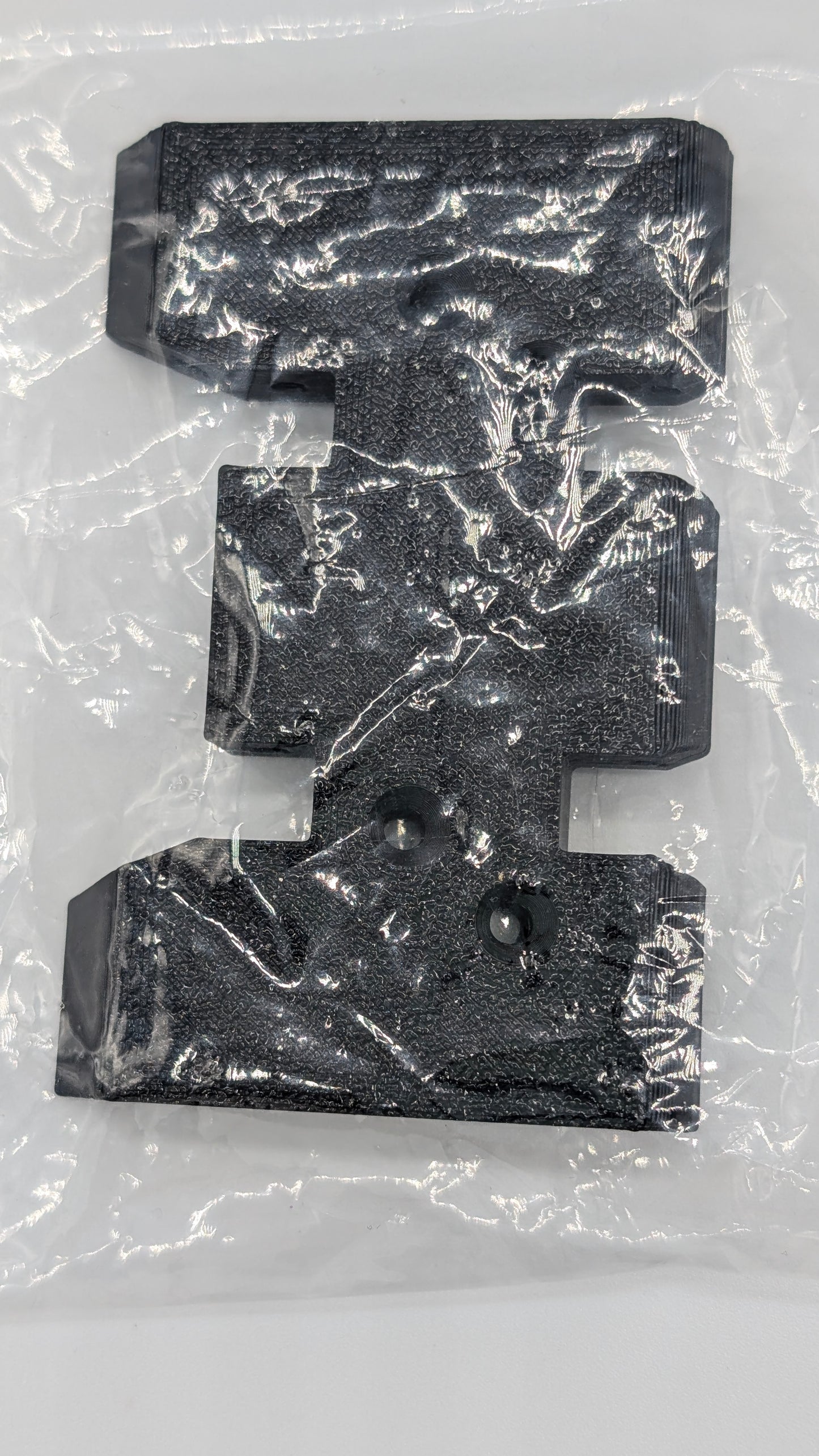

Contains 1x Skid in Black made from "Super Tough" PLA
